CM 318

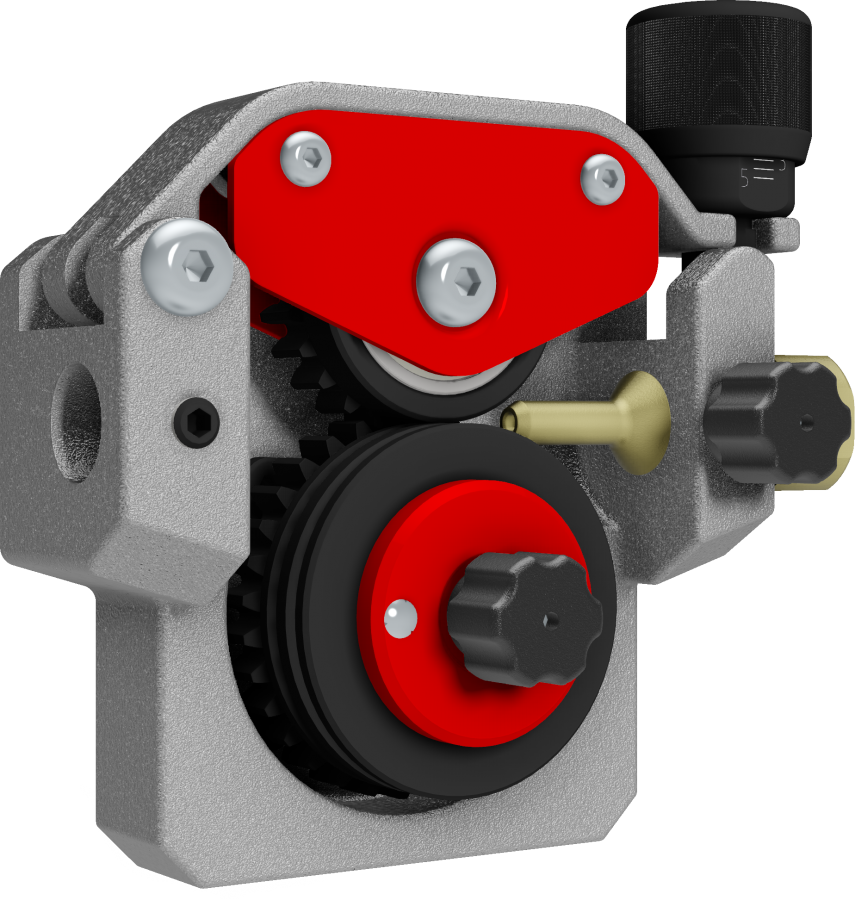

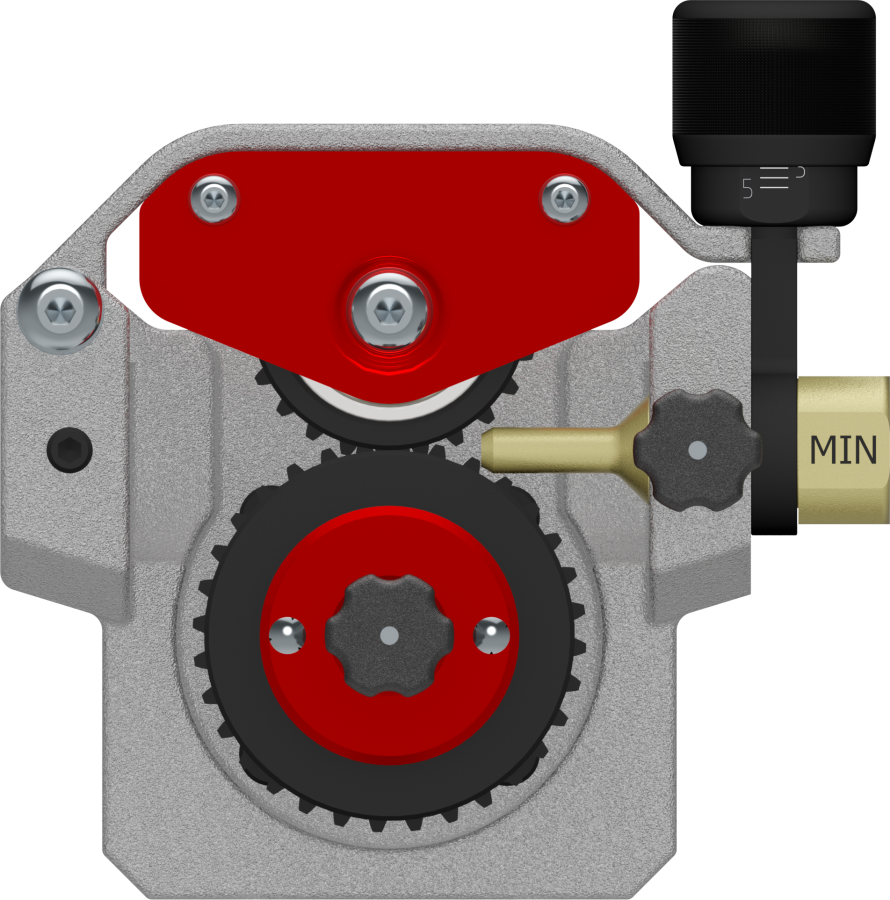

Two Roll Wire Feed Mechanics
of Aluminium Feed Plate
feeds wire from 0,6 to 1,6 mm (.023-1/16")
Protected
Feed roll D30 or D40 mm V or U groove
Knurled feed rolls (option)
Pressure arm with lift opening
Adjusting arm with front opening
Metal plate in different colours (option)
Wire feed motors 25 - 65 W can be assembled
Designed for servo and NEMA17, NEMA23 stepper motors
Assembled to baseplate or backplate
Torch connection on the right or left side
Suggested assemble with:
- Central adaptor and Wire straightener
- Vario central adaptor system (VCA)
- Quick Spring Tension Adjustment system (QST A)
Size (mm): 96 (W) x 96 (H) x 42 (D)
Wire height from bottom: 48,5 mm
Overall fitting dimensions
| Verisons | ||||||
| CM 318-3 | feed roll D30 mm | pressure arm with gear wheel + ball bearings | ||||
| CM 318-4 | feed roll D40 mm | pressure arm with gear wheel + ball bearings | ||||
