CM 416

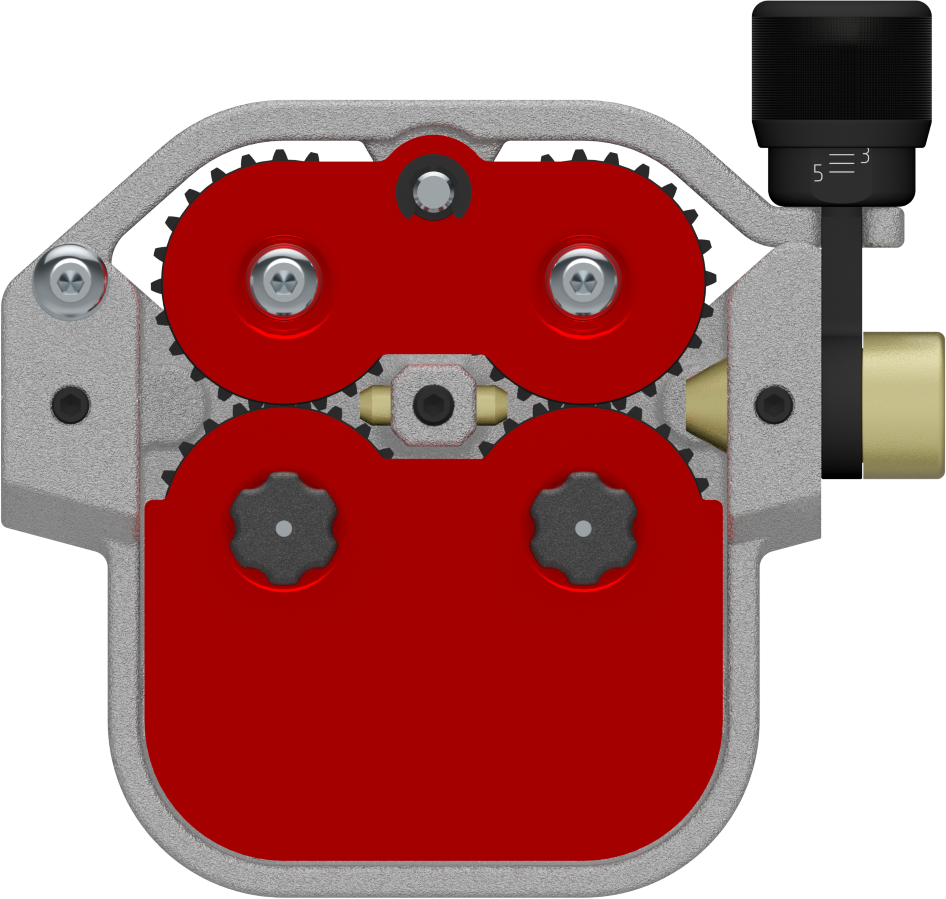

Four Roll Wire Feed Mechanics
of Aluminium Feed Plate
feeds wire from 0,6 to 2,4 mm (.023-3/32")
Protected
Feed roll D30 mm V or U groove
Knurled feed rolls (option)
Pressure arm with lift opening
Adjusting arm with front opening
Metal plate in different colours (option)
Wire feed motors 25 - 120 W can be assembled
Designed for servo and stepper motors
Assembled to baseplate or backplate
Torch connection on the right or left side
Inductive sensor for wire speed measurement can be used
Suggested assemble with Central adaptor and Wire straightener
Size (mm): 116 (W) x 112 (H) x 35 (D)
Wire height from bottom: 60 mm

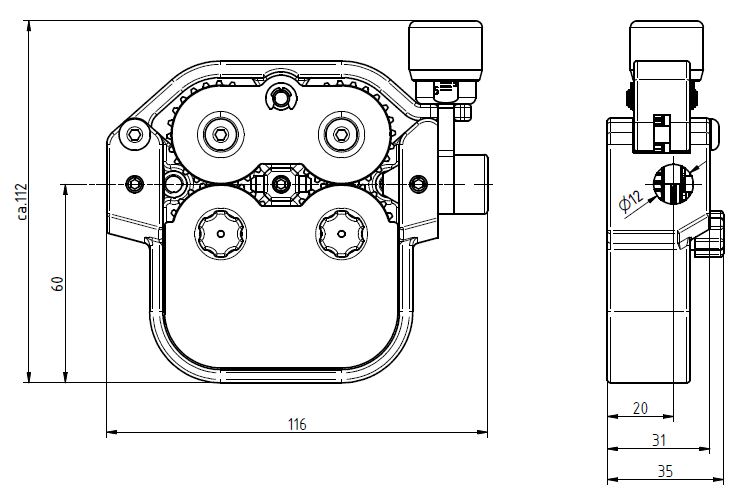

Overall fitting dimensions
| Verisons | ||||||
| CM 416 | feed roll D30 mm | pressure arm with gear wheel + ball bearings | ||||
