CWF 600
Two Roll Wire Feed Mechanics
of Aluminium Feed Plate
feeds wire from 0,6 to 3,2 mm (.023-1/8")
Feed roll D40 mm V or U groove
Knurled feed rolls: option
Pressure arm with lift opening
Adjusting arm with forward opening
Safety guard of metal plate
Radial wire feed motor 40 - 120 W can be assembled in A1-A6, B1-B6
positions with an optional console
Torch connection on the right or left side
Can be assembled to the bottom separation wall with an optional console

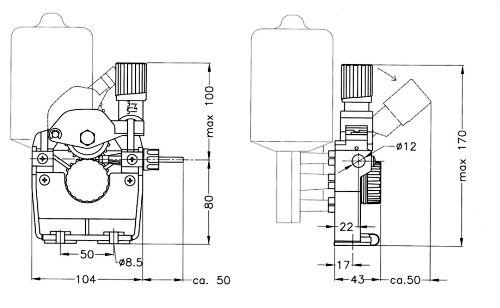

Overall fitting dimensions
| Verisons | ||||||
| CWF 600 | feed roll D40 mm | pressure arm with bearing | ||||

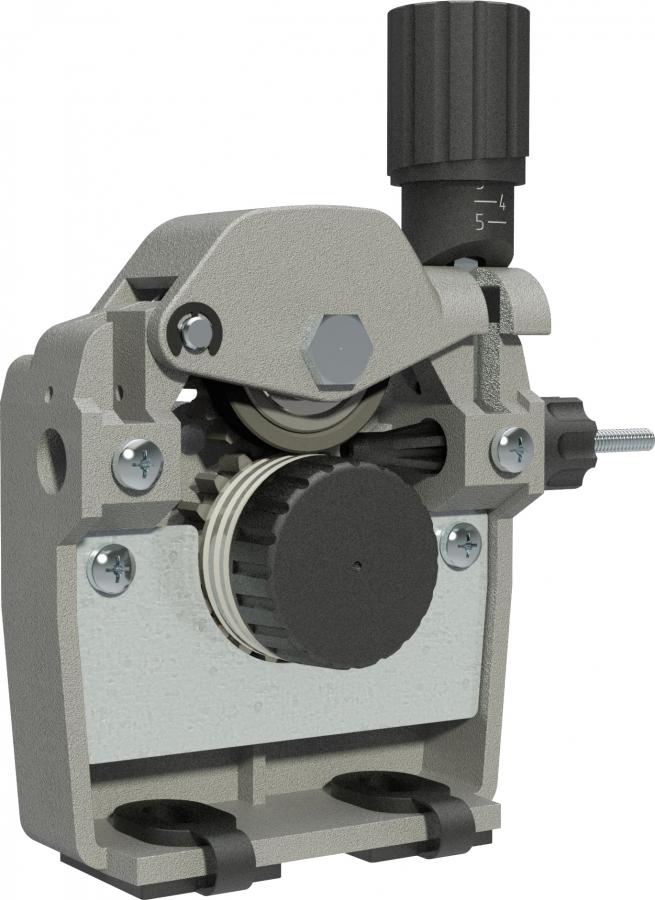

| CWF 610 | feed roll D40 mm | pressure arm with gear wheel | ||||
