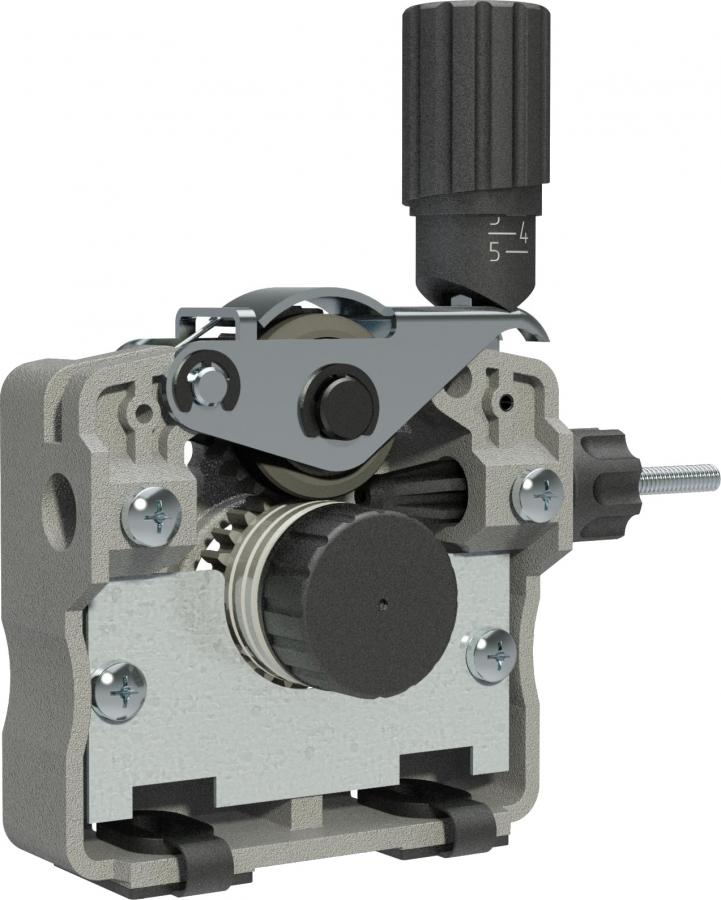

CWF 300
Two Roll Wire Feed Mechanics
of Aluminium Feed Plate
feeds wire from 0,6 to 1,6 mm (.023-1/16")
Feed roll D30 or D40 mm V or U groove
Knurled feed rolls (option)
Pressure arm with lift opening
Adjusting arm with side opening

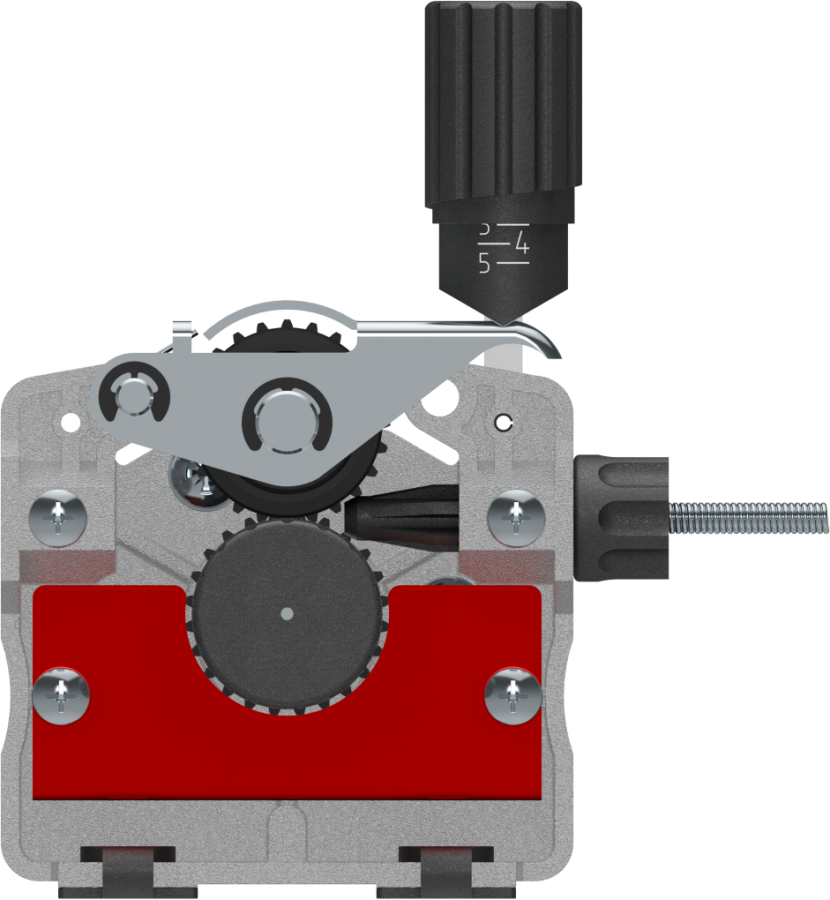

Safety guard of metal plate in different colours (option)
Wire feed motor 25 - 65 W can be assembled in A1-A6, B1-B6 positions
Torch connection on the right or left side
Central adaptor and Wire straightener can be equipped
Size: 90 (W) x 150 (H) x 44 (D)
Wire height from bottom: 60 mm

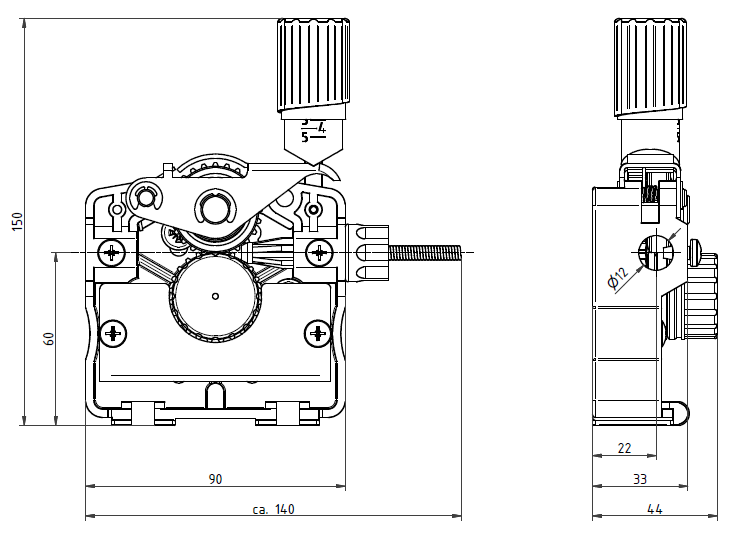

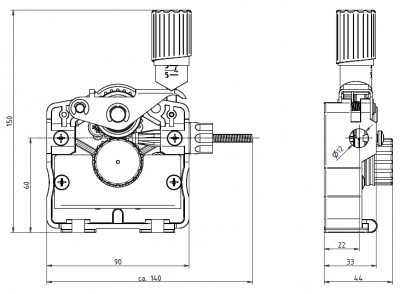

Overall fitting dimensions
| Verisons | ||||||
| CWF 300-3 | feed roll D30 mm | pressure arm with bearing | ||||
| CWF 310-3 | feed roll D30 mm | pressure arm with gear wheel | ||||
| CWF 300-4 | feed roll D40 mm | pressure arm with bearing | ||||
| CWF 310-4 | feed roll D40 mm | pressure arm with gear wheel | ||||
