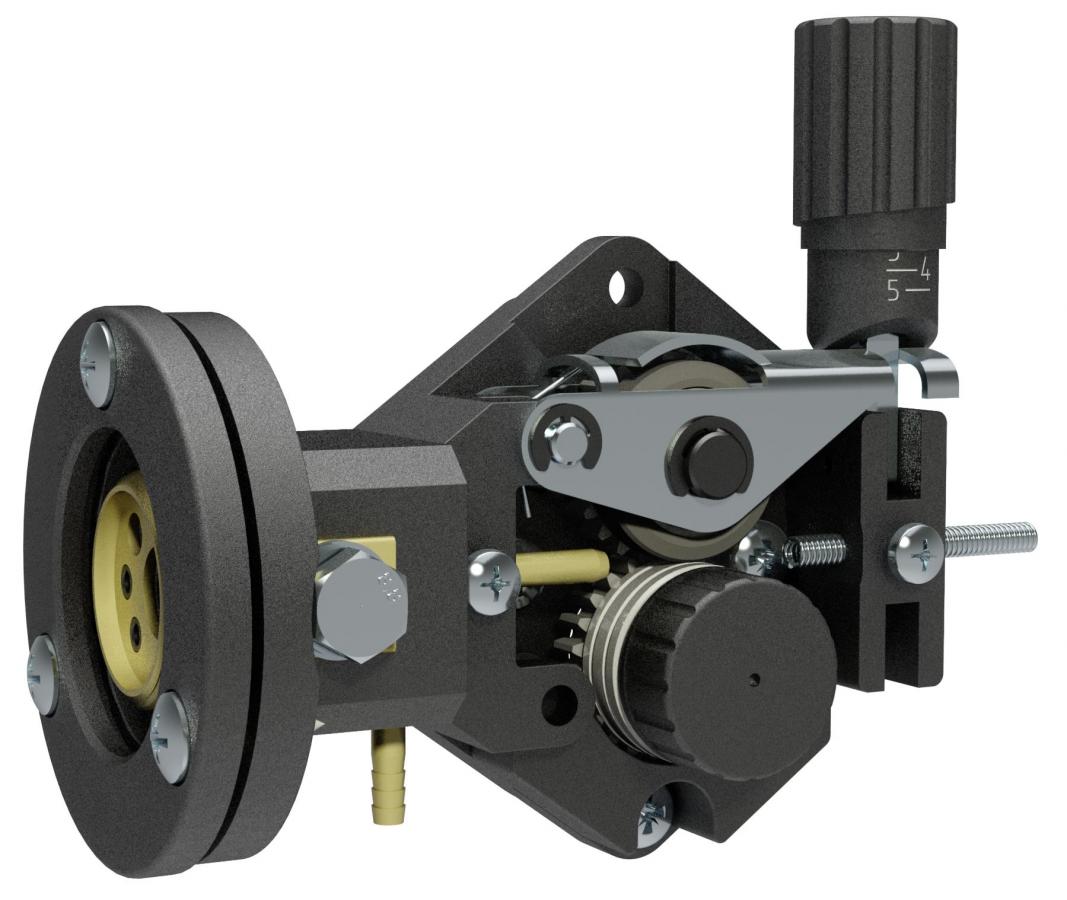

CWF 05
Two Roll Compact Wire Feed System
of plastic feed plate with built in central adaptor
feeds wire from 0,6 to 1,6 mm (.023-1/16")
Feed roll D30 mm V or U groove
Knurled feed rolls (option)
Pressure arm with lift opening
Adjusting arm with front opening
Safety guard of plastic
Wire feed motor 25 - 65 W can be assembled in A1, A3, B1, B3 positions
Torch connection on the right or left side
Current connection optional front side or behind
Gas connection radial in two positions (option)
Size: 175 (W) x 140 (H) x 78 (D)

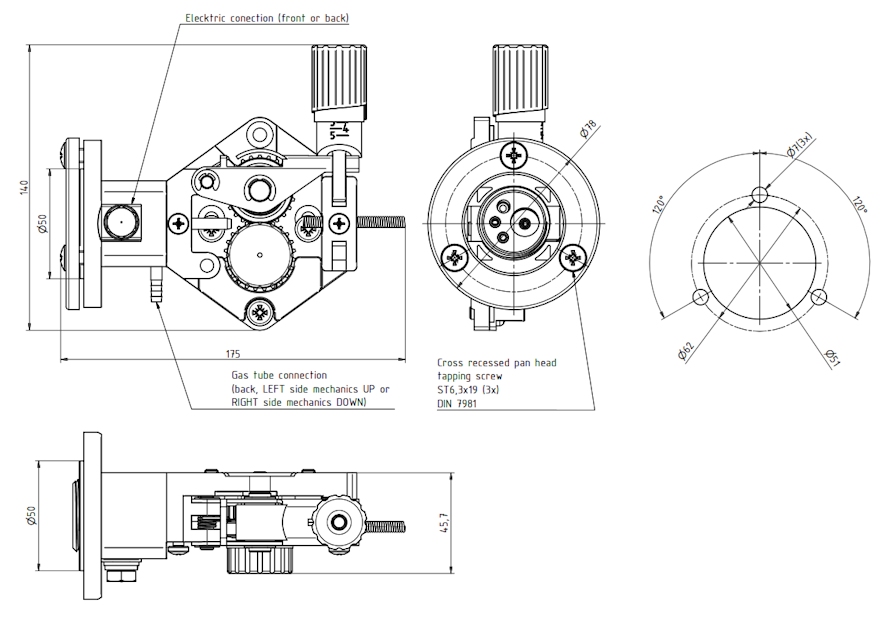

Overall fitting dimensions
| Verisons | ||||||

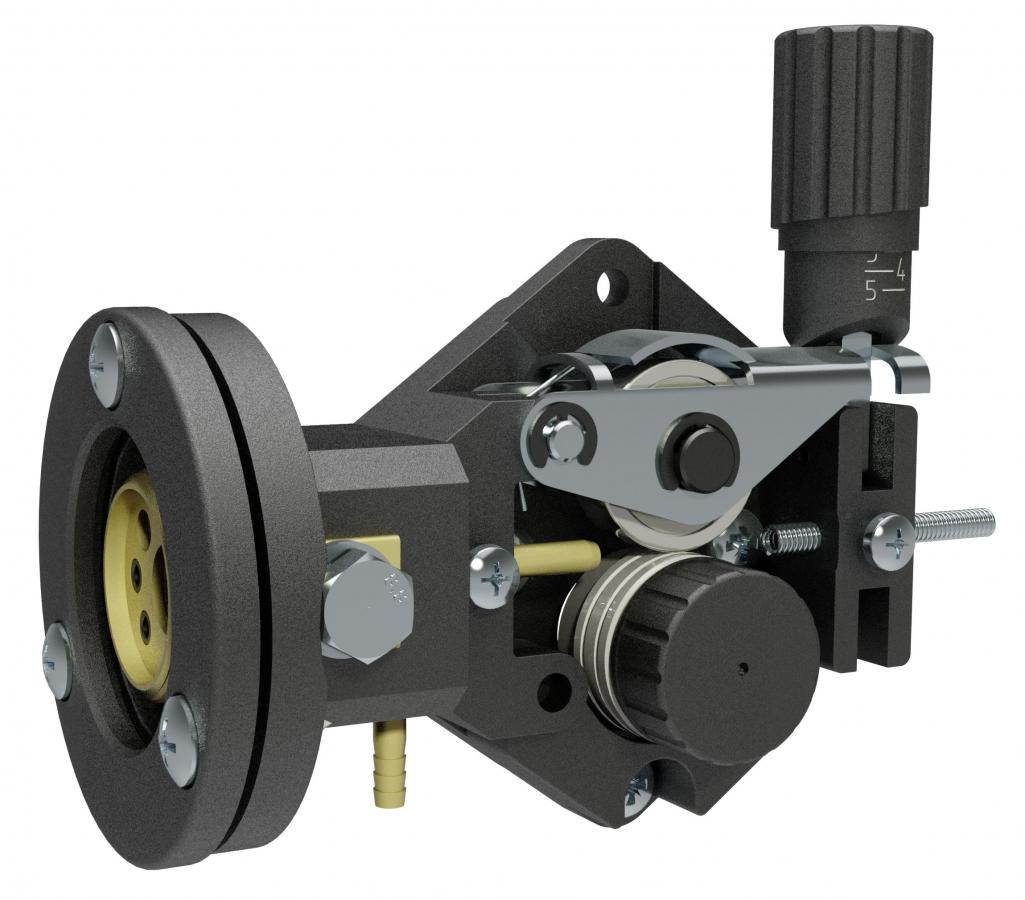

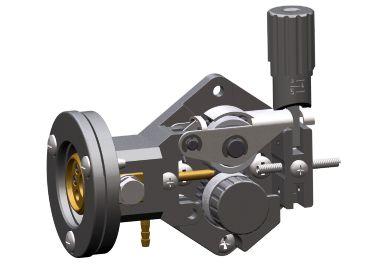

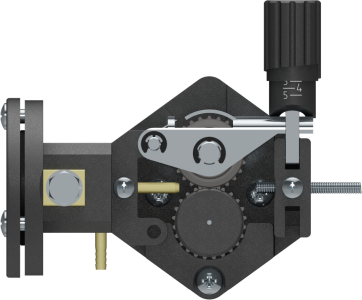

| CWF 050 | feed roll D30 mm | pressure arm with bearing | ||||
| CWF 051 | feed roll D30 mm | pressure arm with gear wheel | ||||
