CWF 502
Four Roll Wire Feed Mechanics
of Aluminium Feed Plate
feeds wire from 0,6 to 3,2 mm (.023-1/8")
Feed roll D40 mm V or U groove
Knurled feed rolls: option
Pressure arm with lift opening
Two adjusting arms with forward opening

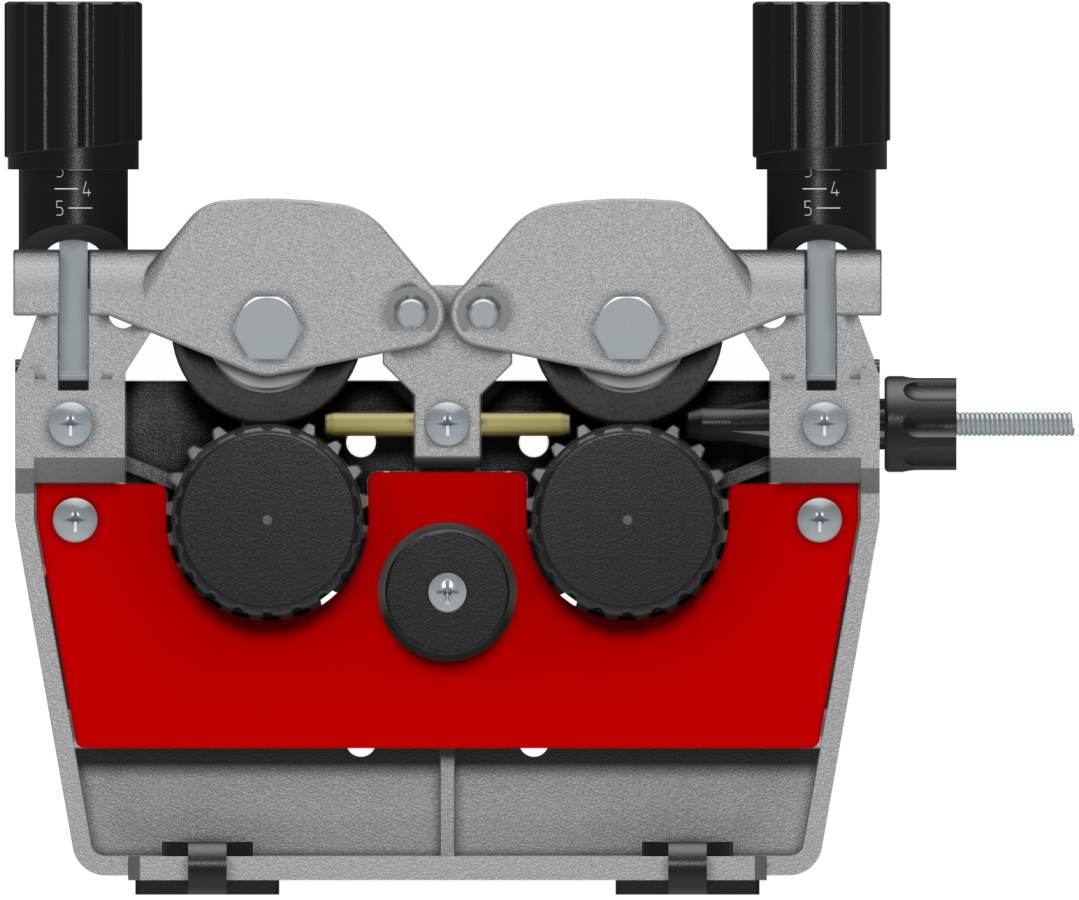

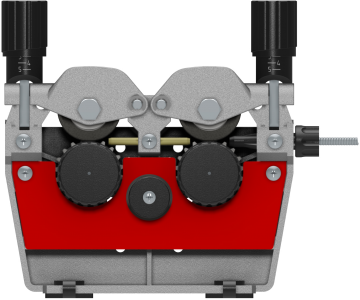

Safety guard of metal plate in different colours (option)
Wire feed motor 40 - 120 W can be assembled in A1-A6, B1-B6 positions
Torch connection on the right or left side
Size: 180 (W) x 198 (H) x 43 (D)
Wire height from bottom: 98 mm

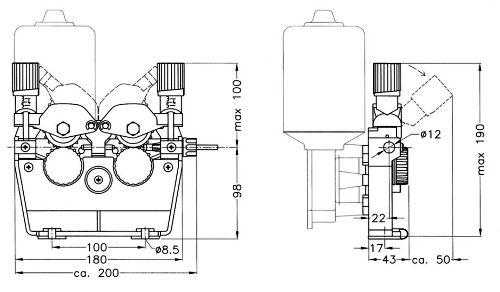

Overall fitting dimensions
| Verisons | ||||||
| CWF 502 | feed roll D40 mm | pressure arm with bearing | ||||

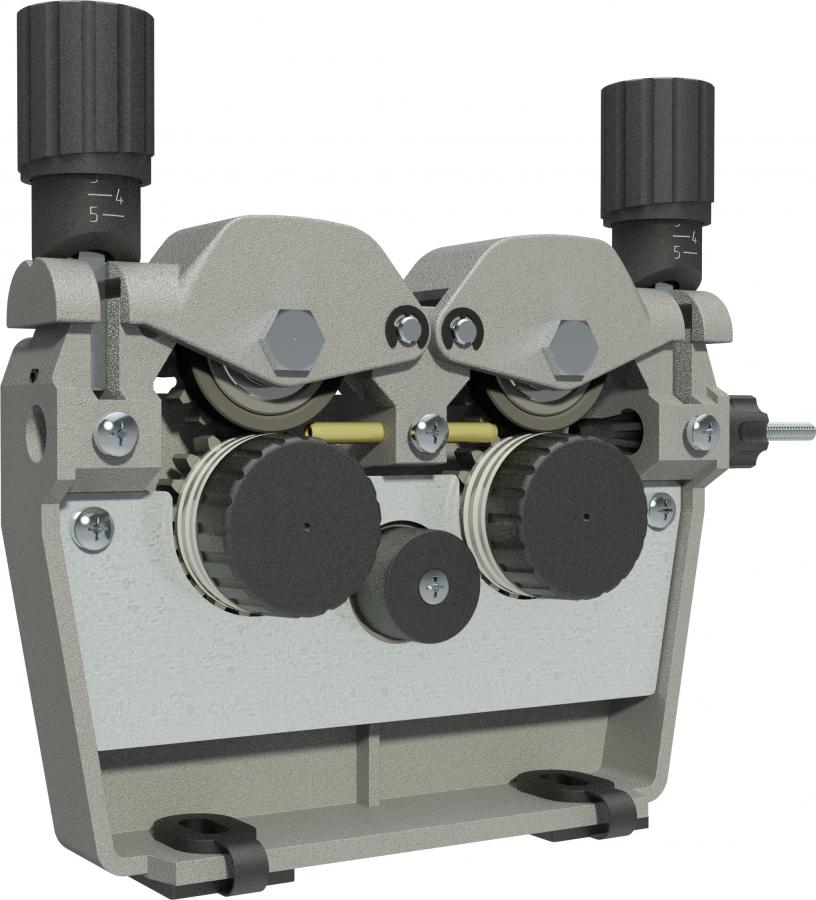

| CWF 512 | feed roll D40 mm | pressure arm with gear wheel | ||||
