CWF 402

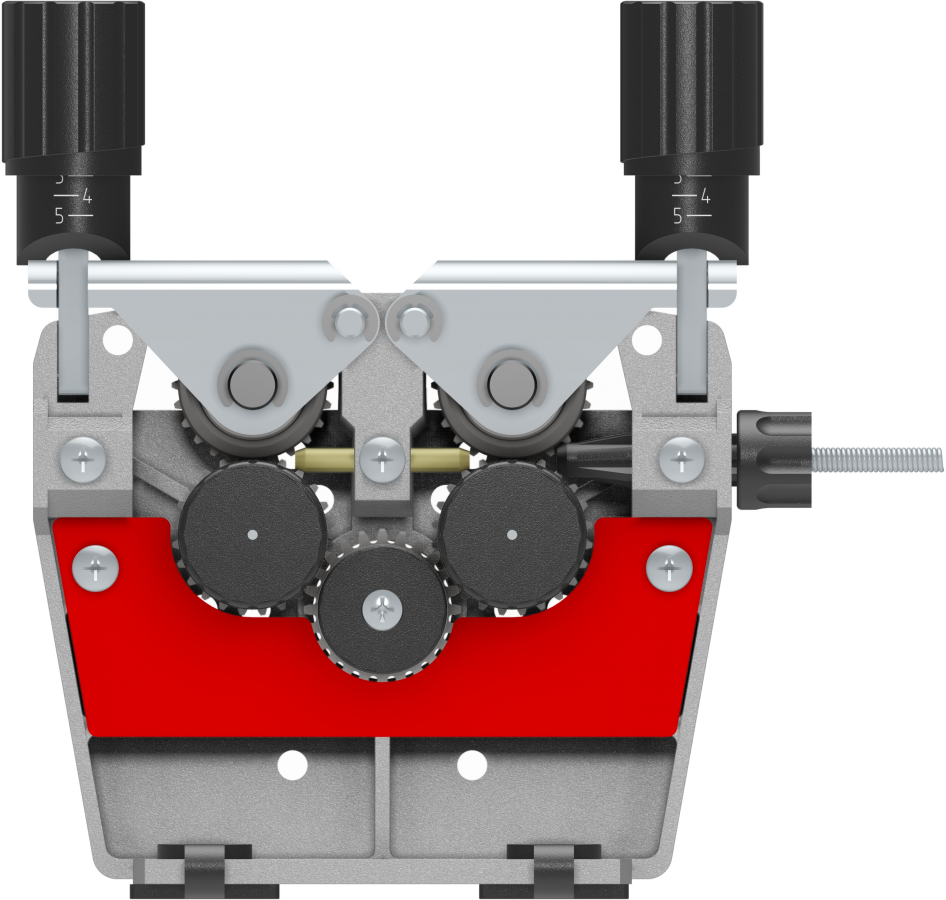

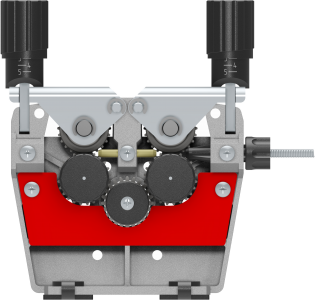

Four Roll Wire Feed Mechanics
of Aluminium Feed Plate
feeds wire from 0,6 to 2,4 mm (.023-3/32")
Feed roll D30 mm V or U groove
Knurled feed rolls: option
Pressure arm with lift opening
Two adjusting arms with forward opening
Safety guard of metal plate in different colours (option)
Wire feed motor 25 - 120 W can be assembled in A1-A6, B1-B6 positions
Torch connection on the right or left side
Size: 140 (W) x 183 (H) x 46 (D)
Wire height from bottom: 88 mm

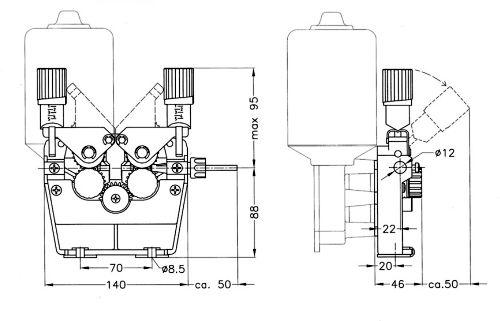

Overall fitting dimensions
| Verisons | ||||||
| CWF 402 | feed roll D30 mm | pressure arm with bearing | ||||

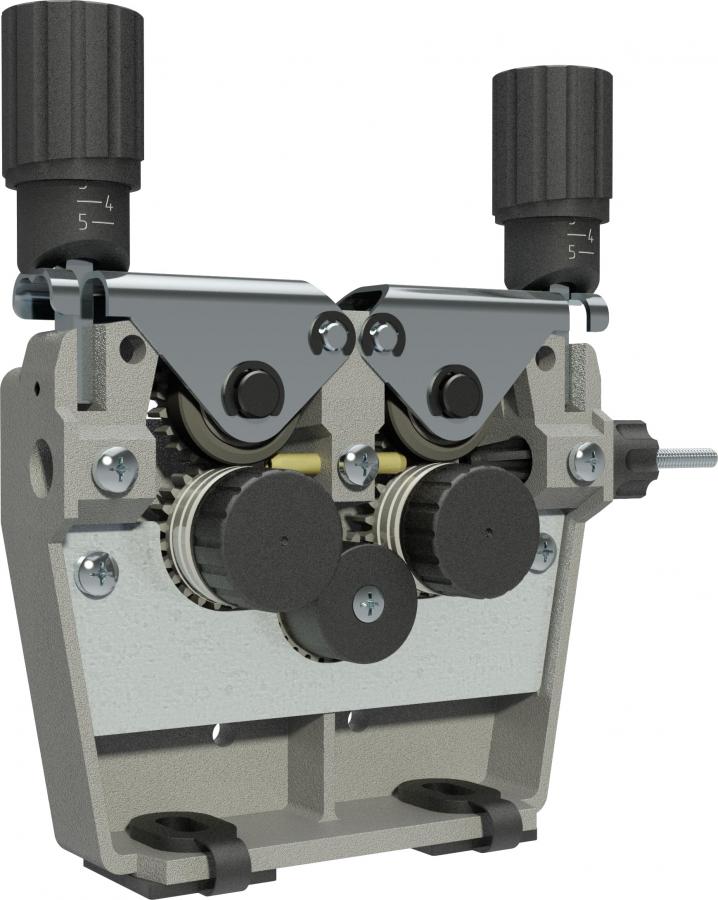

| CWF 412 | feed roll D30 mm | pressure arm with gear wheel | ||||
