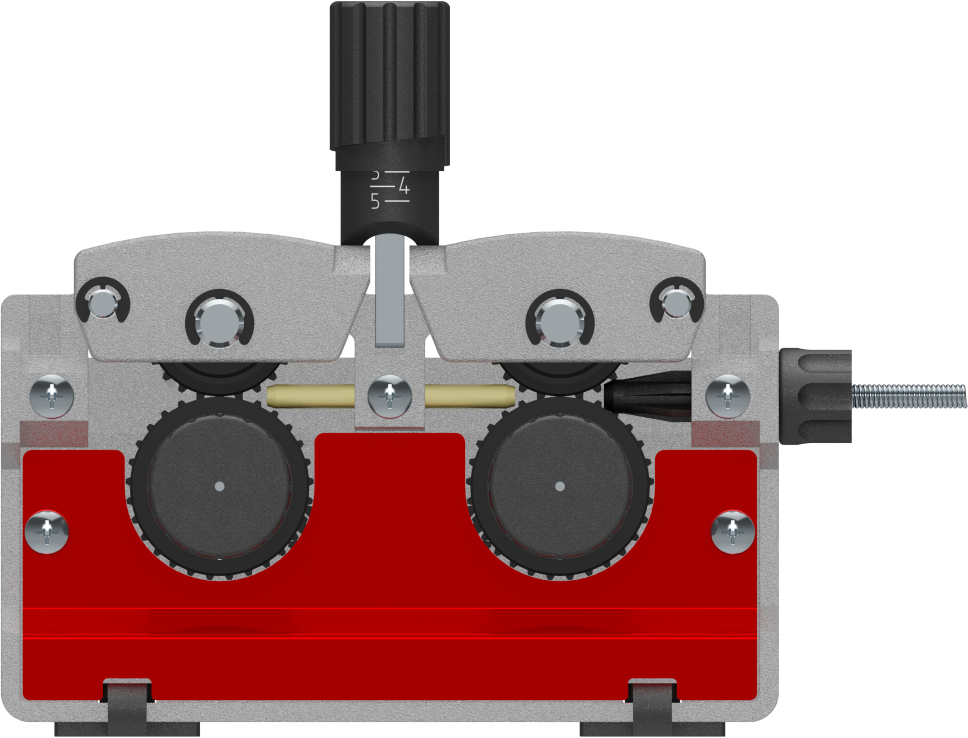

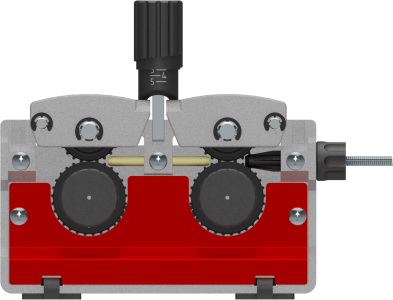

CWF 404
Four Roll Wire Feed Mechanics
of Aluminium Feed Plate
feeds wire from 0,6 to 2,4 mm (.023-3/32")
Feed roll D37 mm V or U groove
Knurled feed rolls (option)
Pressure arm with lift opening
Adjusting arm with front opening
Safety guard of metal plate in different colours (option)
Wire feed motor 25 - 120 W can be assembled
Torch connection on the right or left side
Central adaptor and Wire straightener can be equipped
Size: 160 (W) x 150 (H) x 45 (D)
Wire height from bottom: 70 mm

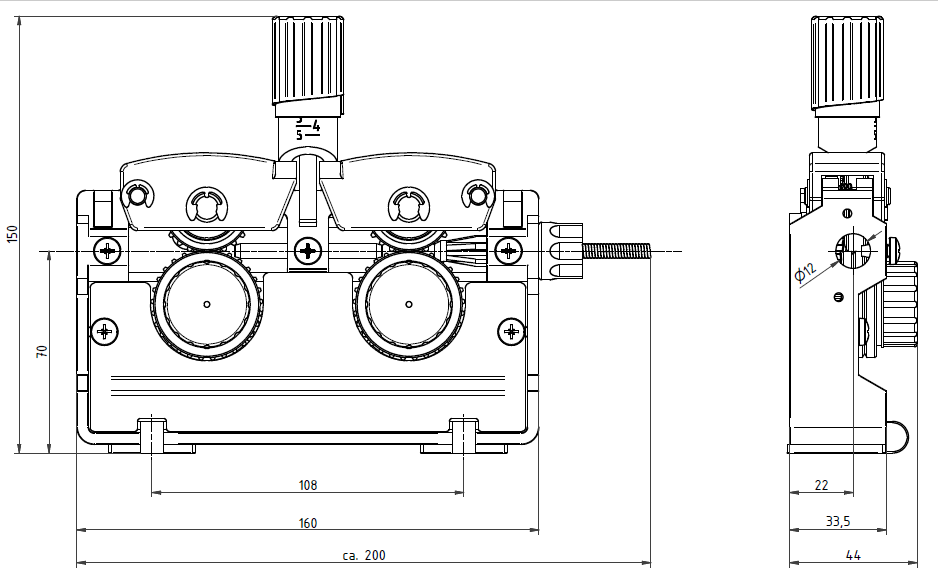

Overall fitting dimensions
| Verisons | ||||||
| CWF 404-37 | feed roll D37 mm | pressure arm with bearing | ||||
| CWF 414-37 | feed roll D37 mm | pressure arm with gear wheel | ||||
