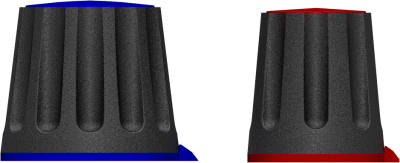

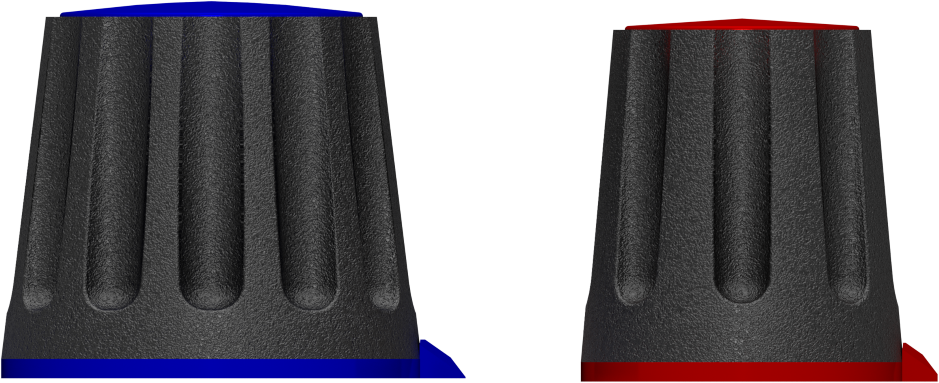

The knobs are fixed onto the spindles by means of the proven collet tightening system
Caps, pointers, nut covers are simply plugged onto the collet knobs

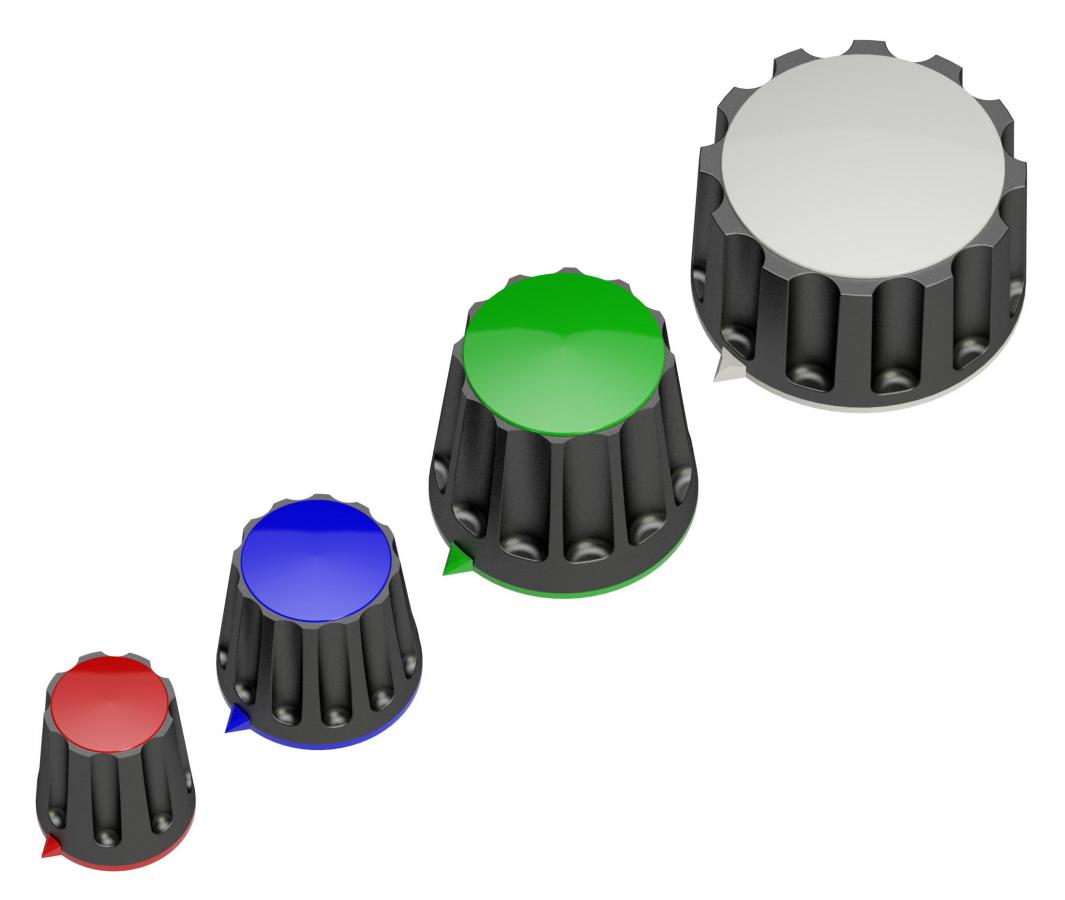

Standard colours: black and red, on request grey and yellow are also available
Material: caps, pointers, nut covers from polyamid collet, sleeves and nuts from brass

Shaft sizes

D3 mm (option)
D4 mm (option)
D6 mm (standard)
D6,4 mm (option)

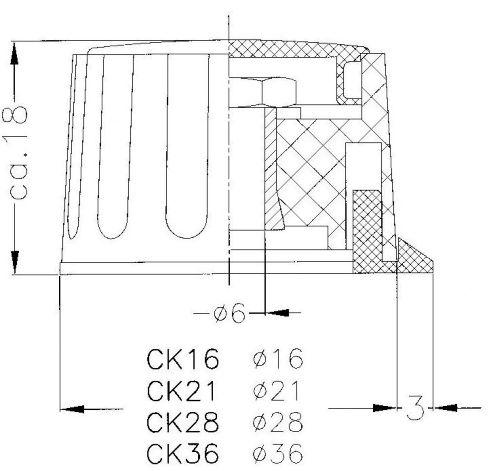

Overall fitting dimensions

CK 16 D16 mm
CK 21 D21 mm
CK 28 D28 mm
CK 36 D36 mm
