Products > CWF Wire Feed Mechanics > Four Rolls > CWF 700

CWF 700

Four Roll Wire Feed Mechanics

of Aluminium Feed Plate

feeds wire from 1,6 to 4,0 mm (.023-5/32")

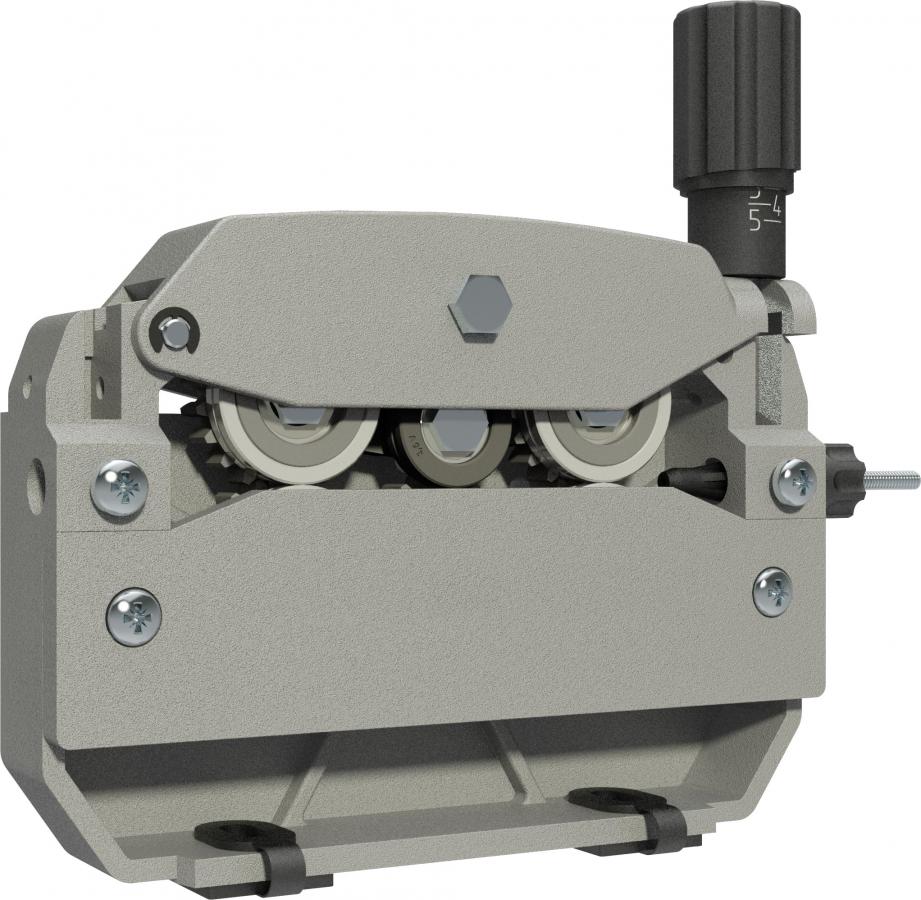

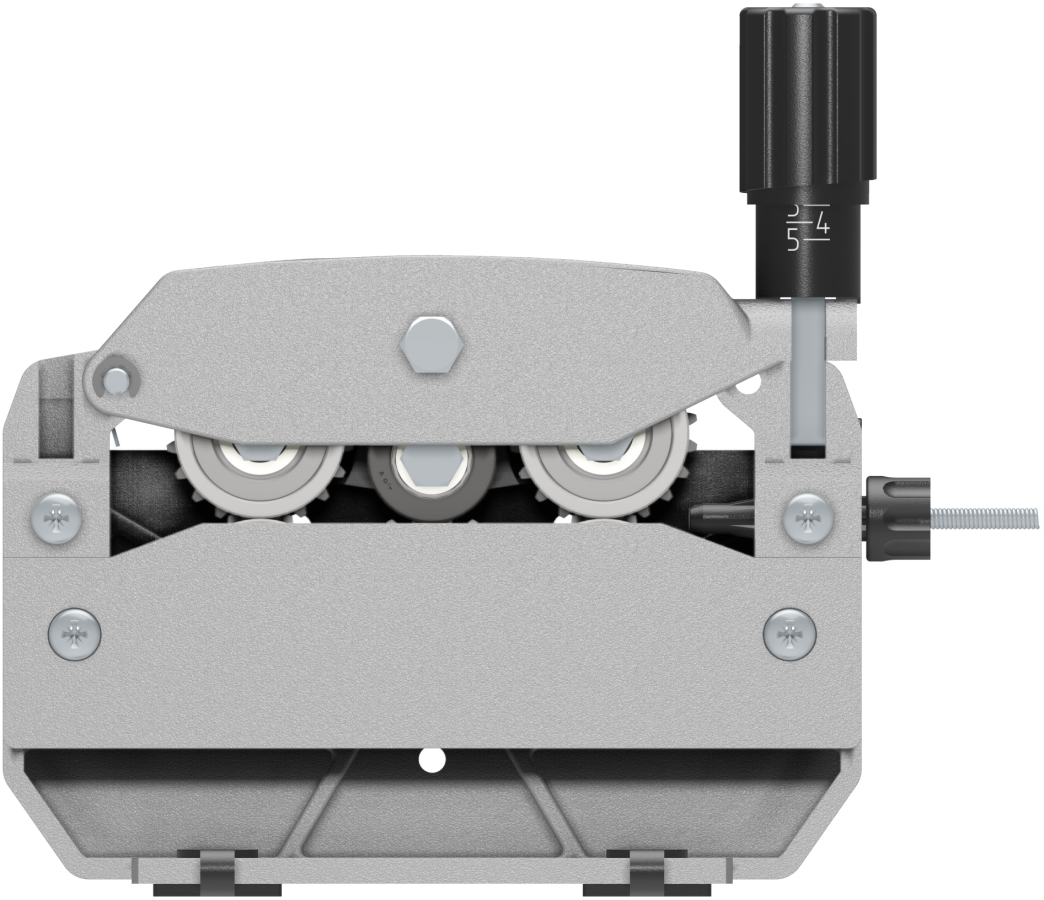

CWF 700 Four Roll Wire Feed Mechanics
CWF 700 Four Roll Wire Feed Mechanics CWF 700 Four Roll Wire Feed Mechanics CWF 700 Four Roll Wire Feed Mechanics

Feed roll D40 mm V or U groove
Pressure arm with lift opening
Robust body
Construction with reduced wire shaving
Wider, stronger gear wheels
Grooved upper rolls
One adjusting arm with forward opening
Safety guard of metal plate (aluminium casting: option)
Wire feed motor 40 - 150 W can be assembled in A1-A6, B1-B6 positions
Torch connection on the right or left side
Option: Wire straighteners type WS 3 or WS 5 are selectable and can be built in
Size: 200 (W) x 198 (H) x 42 (D)
Wire height from bottom: 88 mm

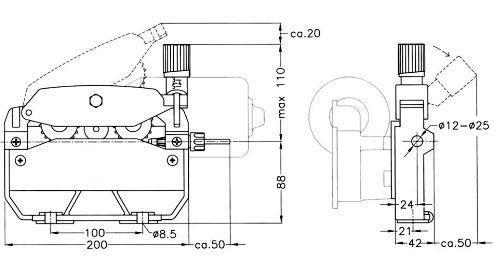

Overall fitting dimensions
