CWF 06

Four Roll Compact Wire Feed System

of plastic feed plate with built in central adaptor

feeds wire from 0,6 to 2,4 mm (.023-3/32")

Feed roll D30 mm V or U groove
Knurled feed rolls (option)
Pressure arm with lift opening
Adjusting arm with front opening
Safety guard of plastic
Wire feed motor 25 - 65 W can be assembled in A1, A3, B2, B4 positions
Torch connection on the right or left side
Current connection optional front side or behind
Gas connection radial in two positions (option)
Size: 200 (W) x 150 (H) x 78 (D)

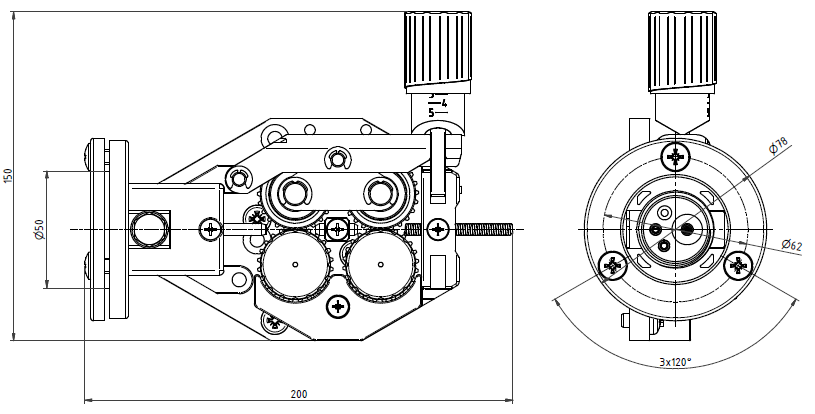

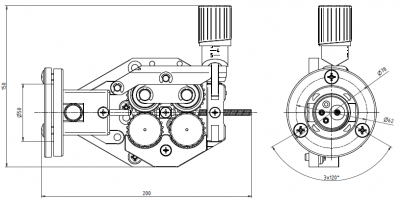

Overall fitting dimensions

Verisons

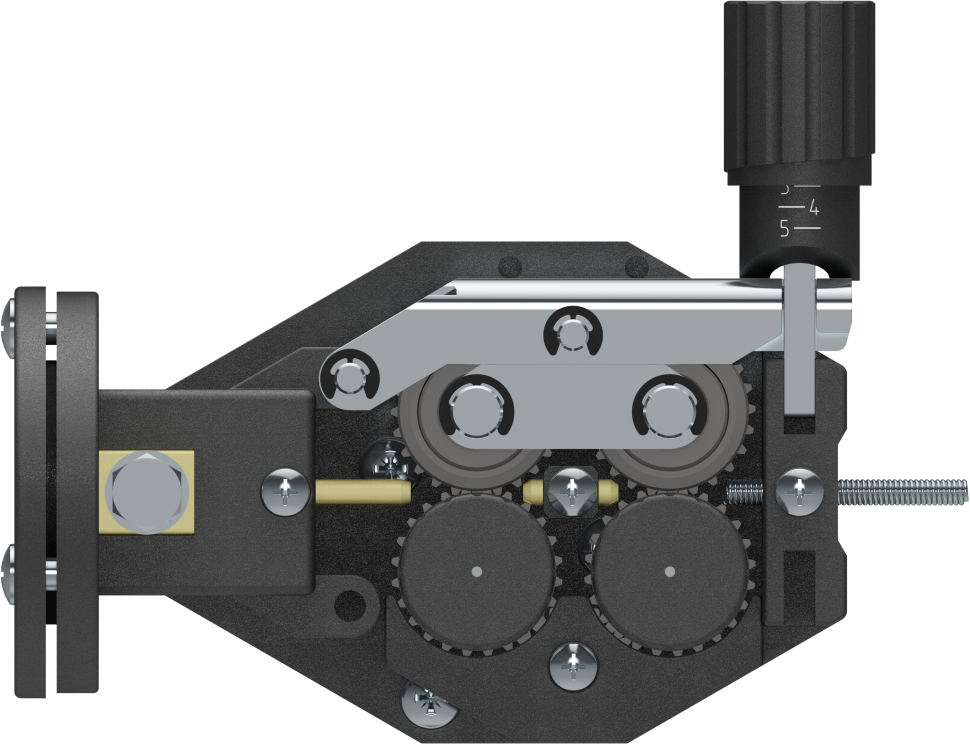

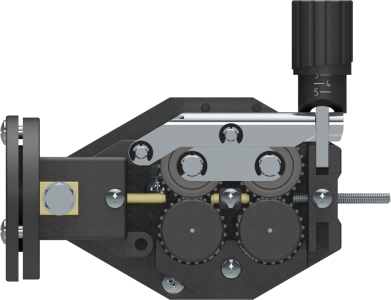

CWF 060 feed roll D30 mm pressure arm with bearing

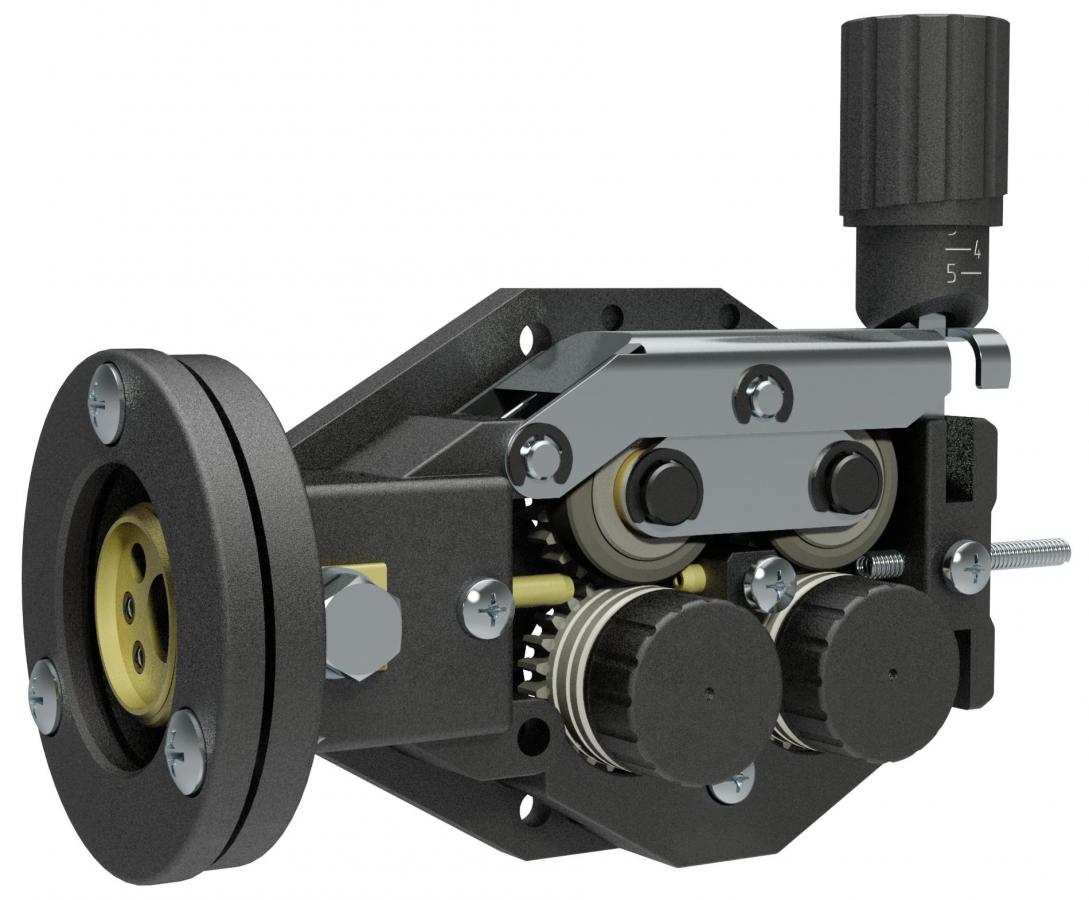

CWF 061 feed roll D30 mm pressure arm with gear wheel
