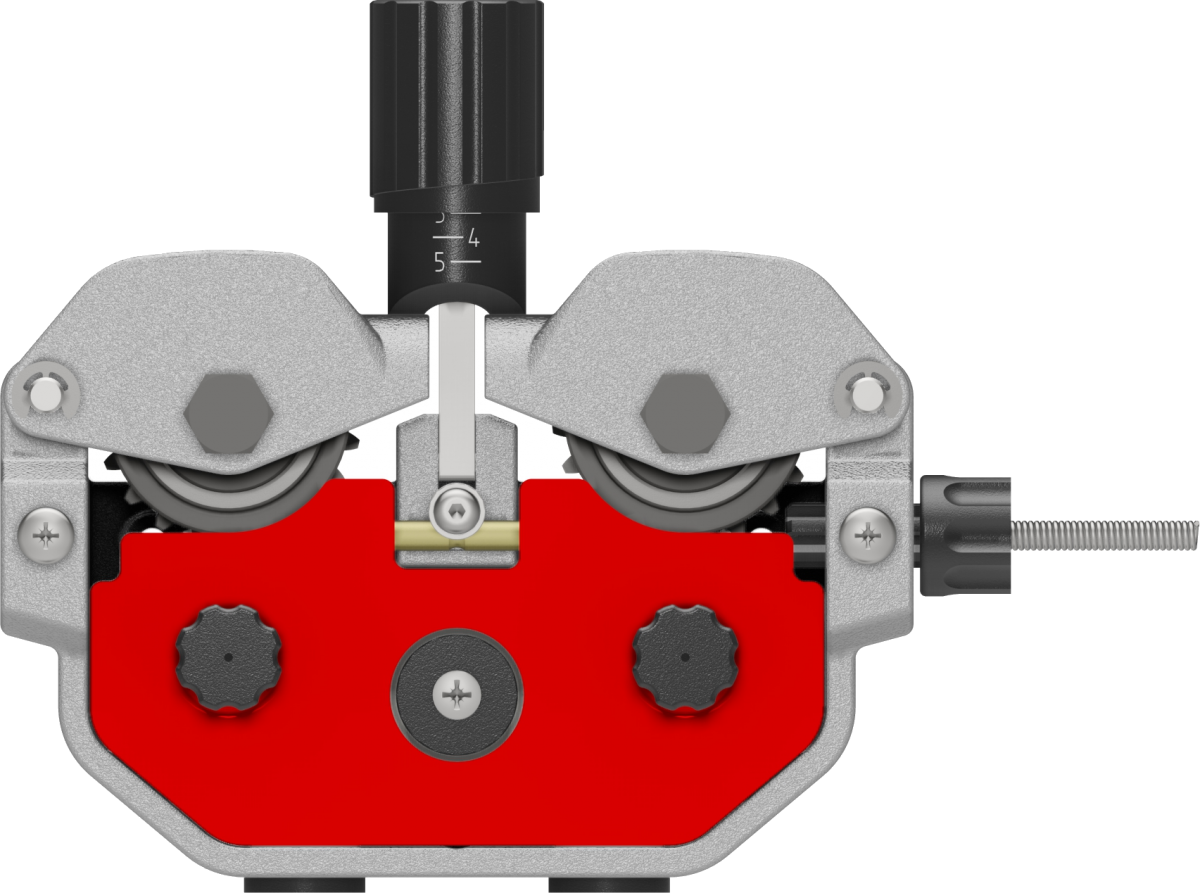

CWF 524
Four Roll Wire Feed Mechanics
of Aluminium Feed Plate
feeds wire from 0,6 to 3,2 mm (.023-1/8")
Feed roll D40 mm V or U groove
Knurled feed rolls: option
Pressure arm with lift opening
Adjusting arm with forward opening
Safety guard of metal plate
Radial wire feed motor 40 - 120 W can be assembled in A1-A6, B1-B6 positions with an optional console
Torch connection on the right or left side
Can be assembled to the bottom separation wall with an optional console
Size: 150 (W) x 150 (H) x 41 (D)
Wire height from bottom: 60 mm

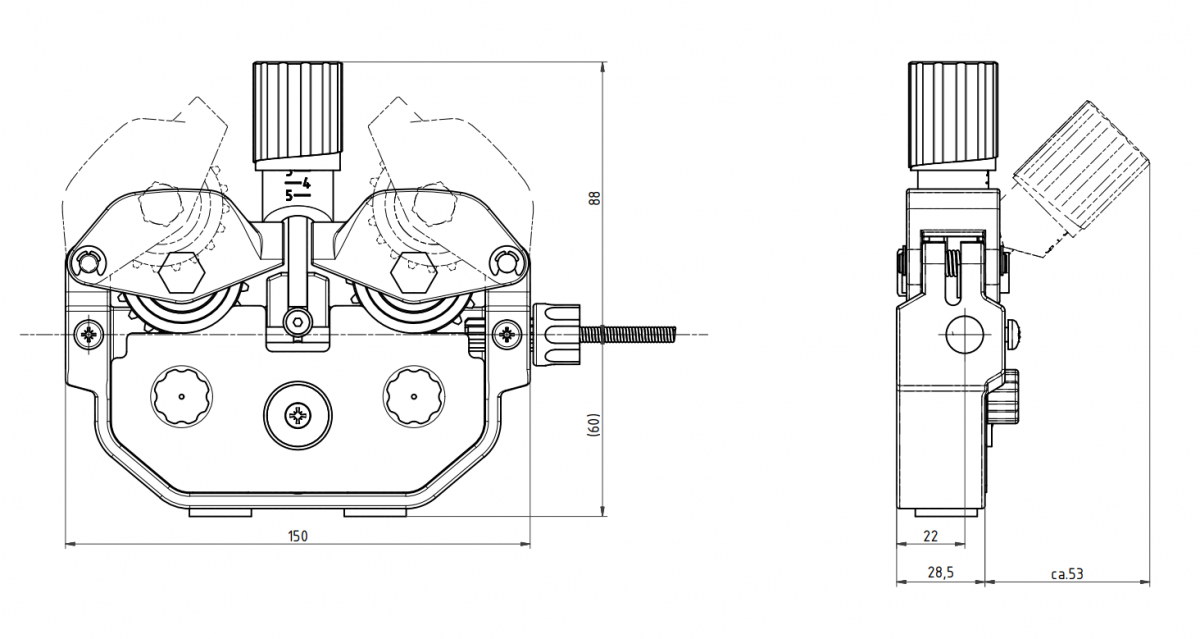

Overall fitting dimensions
| Verisons | ||||||
| CWF 524 | feed roll D40 mm | pressure arm with gear wheel + ball bearing | ||||
