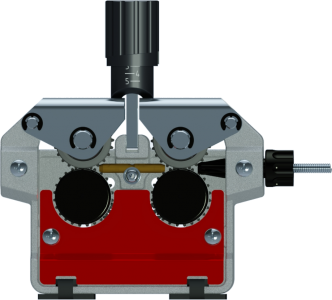

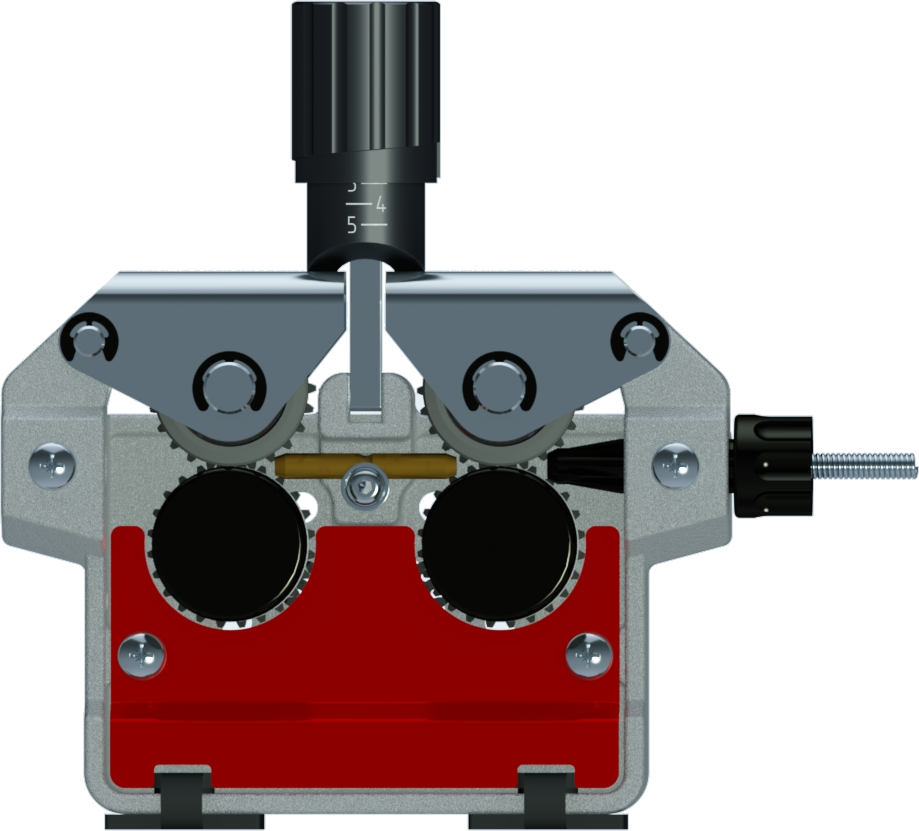

CWF 421
Four Roll Wire Feed Mechanics
of Aluminium Feed Plate
feeds wire from 0,6 to 2,4 mm (.023-3/32")
Feed roll D30 mm V or U groove
Knurled feed rolls (option)
Gear wheels with ball bearings (option)
Pressure arm with lift opening
Adjusting arm with front opening
Safety guard of metal plate in different colours (option)
Wire feed motor 25 - 120 W can be assembled in A1-A6, B1-B6 position
Torch connection on the right or left side
Central adaptor and Wire straightener can be equipped
Size: 106 (W) x 150 (H) x 43 (D)
Wire height from bottom: 70 mm

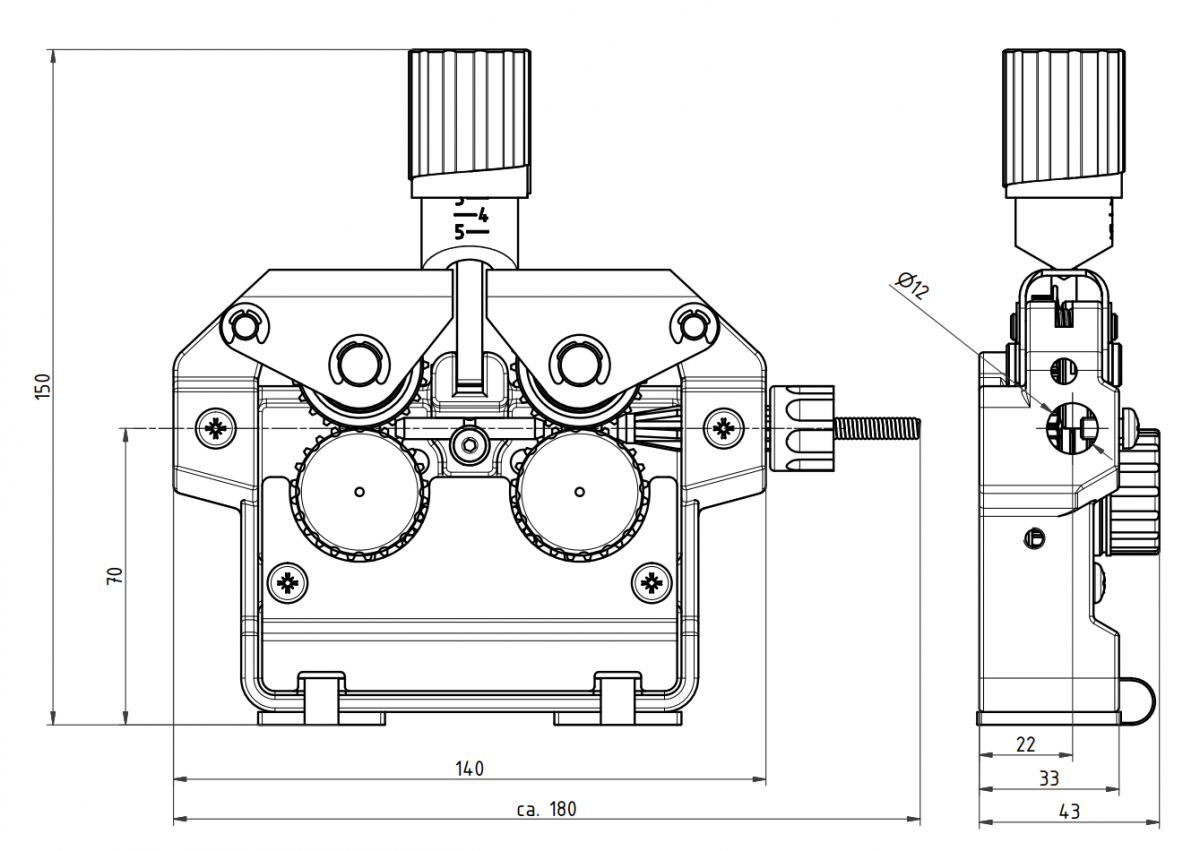

Overall fitting dimensions
| Verisons | ||||||
| CWF 421-10 | feed roll D30 mm | pressure arm with bearing | ||||
| CWF 421-11 | feed roll D30 mm | pressure arm with gear wheel | ||||
